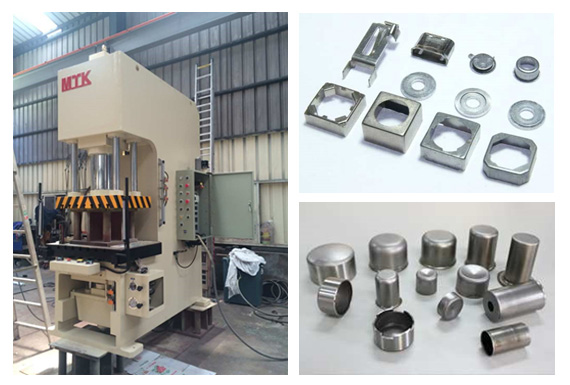

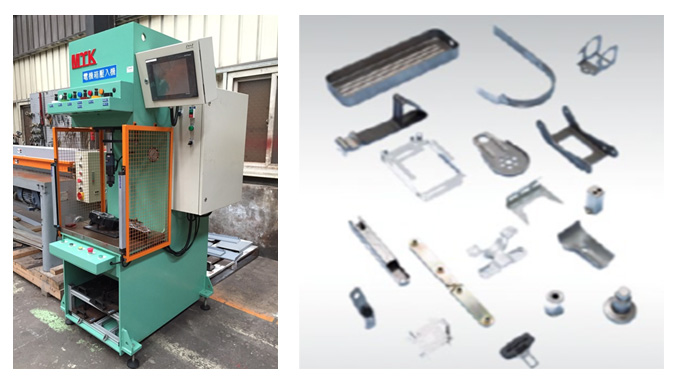

C-FRAME HYDRAULIC PRESS 100~5,000Kn (MAC Series)
OPTIONAL ACCESSORIES
- Mono or color NC touch screen with linear transducer.
- RAM lock device.
- Quick die change system. (Q.D.C)
- Punching damper.
- Drawing cushion.
- Individual chiller system.
| MODEL |
Slide Force (Kn) |
Bolster size (mm) |
Bolster height (mm) |
Motor (Hp) |
Daylight (mm) |
Stroke (mm) |
| MAC-10 |
100 |
400 x 250 |
500 x 350 |
2 |
350 |
250 |
| MAC-50 |
500 |
600 x 400 |
700 x 500 |
10 |
500 |
350 |
| MAC-100 |
1000 |
800 x 600 |
1000 x 700 |
15 |
700 |
500 |
| MAC-200 |
2000 |
800 x 600 |
1000 x 700 |
20 |
700 |
500 |
| MAC-300 |
3000 |
1000 x 700 |
1200 x 800 |
30 |
800 |
600 |
| MAC-400 |
4000 |
1000 x 700 |
1200 x 800 |
40 |
800 |
600 |
| MAC-500 |
5000 |
1200 x 800 |
1500 x900 |
50 |
900 |
600 |
