ECONOMICAL PRODUCTION

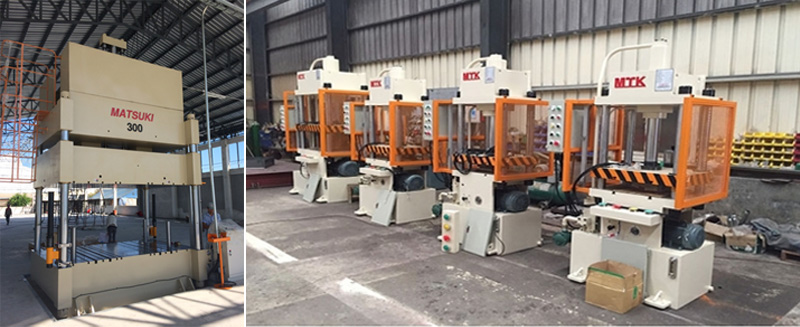

4-Post hydraulic press with simple structure would achieve high product qualities and low unit costs Due to a robust and stable design, these compact presses are durable and long-lasting. Equipped with a time-controlled recirculating oil lubrication system, they are also low-maintenance.
4-post presses are very easy to start up and are ready to operate in a short amount of time. Fast commissioning and press reliability play critical roles in modern production conditions. Standardized and modular design guarantees this and also results in high-quality production.
STANDARD ACCESSORIES
- Overload protection valves.
- Front side safety light curtain.
- Oil cooler system.
- Central lubrication system (cooling water type).
- T-slotted in slide and bolster. ‧Pressure Switch.
| MODEL | Slide Force (Kn) | Bolster size (mm) | Bolster height (mm) | Motor (Hp) | Daylight (mm | Stroke (mm) |
| MAP-10 | 100 | 500 x 350 | 750 | 2 | 350 | 250 |
| MAP-50 | 500 | 700 x 500 | 750 | 10 | 500 | 350 |
| MAP-100 | 1000 | 1000 x 700 | 900 | 15 | 700 | 500 |
| MAP-200 | 2000 | 1200 x 700 | 900 | 20 | 700 | 500 |
| MAP-300 | 3000 | 1200 x 800 | 1100 | 30 | 800 | 600 |
| MAP-400 | 4000 | 1200 x 800 | 1100 | 40 | 800 | 600 |
| MAP-500 | 5000 | 1500 x 900 | 1300 | 50 | 900 | 600 |
