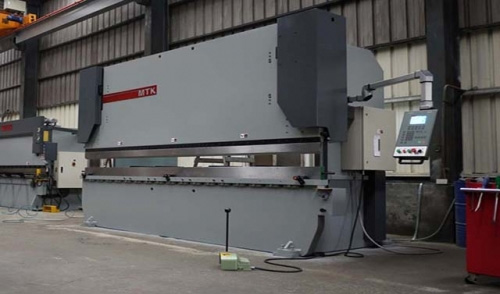

PRESS BRAKE (MAB Series)

PRESS BRAKE (MAB Series)

MAB SERIES

SPECIFICATION

Model	Bending Force	Bending Capacity	Distance Between Housings	Stroke	Daylight	Table Width	Motor	Speed			Gap
	Bending Force	Bending Capacity	Distance Between Housings	Stroke	Daylight	Table Width	Motor	UP	Down	Pressing	Gap
	Ton	mm	mm	mm	mm	mm	HP	mm/sec	mm/sec	mm/sec	mm
MAB-3015	30	2.0 x 1550	1250	150	250	160	3	60	100	7	200
MAB-3020	30	1.8 x 1830	1550	150	250	160	3	60	100	7	200
MAB-6020	60	3.5 x 1830	1550	150	300	160	7.5	60	100	7	200
MAB-6026	60	3.0 x 2440	2100	150	300	160	7.5	60	100	7	200
MAB-6032	60	2.5 x 3050	2600	150	300	160	7.5	60	100	7	200
MAB-10026	100	4.5 x 2440	2100	200	350	200	10	60	100	6	250
MAB-10032	100	3.5 x 3050	2600	200	350	200	10	60	100	6	250
MAB-10040	100	2.5 x 3660	3400	200	350	200	10	60	100	6	250
MAB-15026	150	6.4 x 2440	2100	200	400	200	15	60	100	6	250
MAB-15032	150	5.4 x 3050	2600	200	400	200	15	60	100	6	250
MAB-15040	150	4.5 x 3660	3200	20	400	200	15	60	100	6	250
MAB-20032	200	7.0 x 3050	2600	200	400	200	20	60	100	6	250
MAB-20040	200	6.0 x 3660	3200	200	400	200	20	60	100	6	250
MAB-30032	300	10 x 3050	2600	250	500	280	30	65	75	6	300
MAB-30040	300	9.0 x 3660	3200	250	500	280	30	65	75	6	300
MAB-40040	400	12 x 3660	3200	300	500	280	40	65	75	6	350
MAB-40062	400	7.0 x 6100	5100	300	500	280	40	65	75	6	350
MAB-50042	500	15 x 3660	3200	300	550	280	50	65	75	6	350
MAB-50062	500	12 x 6100	5100	300	550	280	50	65	75	6	350
MAB-60042	600	20 x 3660	3200	350	650	350	60	65	75	6	400
MAB-60062	600	14 x 6100	5100	350	650	350	60	65	75	6	400
