DUCIS Stamping die computerized Slug Detector SD-401/402/601/602/802/804

沖壓模具微電腦下死點檢出裝置

• DUCIS SD-401/402
• DUCIS SD-601/602
• RIKEN MICRON III
• DUCIS SD-802/804

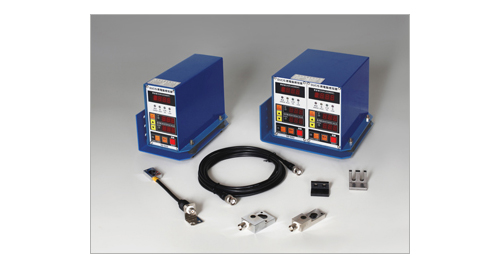

DUCIS SD-401/402

Product Features
SD-401-One basic unit, Single output device (Single Port)
SD-402-One basic unit, Dual output device (Dual Ports)

1.Sensor operation setup distance: Location(A)from 0.8mm to 1.2mm,please press setup switch thereafter 199-0 displayed ,Move the iron block of the sensor head ,it can be adjusted to 80~120 as operation distance. (Meaning 0.8mm to 1.2mm ) Press setup switch again after set-up process.
2.Operation of monitoring value setup: Accuracy range set up from ±1μm~±99μm,depends on your exact accuracy requirement.
3.While stamping die starts running, the first four times displaying digits meaning the average of the die-height testing.(It will be re-calculated while stamping machine power off or the sensor line out of the basic unit and re-plug-in).
4.Self-Check functions available.
5.This product provides precision set-up value as 1μm, it is selectable against different accurate toolings.
6.Options available for Error-Carry-On, Missing material (by Electro-Eyes sensor) and Material Jammed (By sensoring Bar)

DUCIS SD-601/602

Product Features
SD-601-One basic unit, Single output device (Single Port)
SD-602-One basic unit, Dual output device (Dual Ports)

1.Sensor operation setup distance: Location(A) from 0.8mm to 1.2mm,please press MONITOR ON/OFF switch thereafter the red light lights
up.Then press setup switch thereafter “Hi” displayed. Move the iron block of the sensor head, it can be adjusted to 0.8mm~1.2mm as
operation distance.(Meaning 0.8mm to 1.2mm). Press MONITOR ON/OFF switch again after set-up process,the Green light lights up.
2.Operation of monitoring value setup: Accuracy range set up from ±0.5μm~±99.9μm,depends on your exact accuracy requirement.
3.While stamping die starts running, the first six times displaying digits meaning the average of the die-height testing.(It will be re-calculated
while stamping machine power off or the sensor line out of the basic unit and re-plug-in),please press monitor MONITOR ON/OFF
switch thereafter the green light lights up.
4.This product can be choose set up in effective or ineffective.The lights is red when the set up is off.The lights is green when the set up is
on.
5.This product provides precision set-up value as 0.5μm, it is selectable against different accurate toolings.
6.Options available for Error-Carry-On, Missing material (by Electro-Eyes sensor) and Material Jammed (By sensoring Bar).

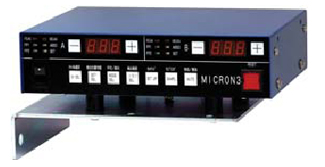

RIKEN MICRON III

Product Features
1.High Accuracy with 0.1μm resolution.
2.Simultaneously Monitors Rolling Average and Benchmark.
3.Fault Counter Function incorporated.
4.Automatic Sensor Calibration incorporated.
5.Slow Down Detecting Function employed.
6.Corresponds to Servo Press machine(Optional).
7.Various Sensors are provided.
8.Front Porch (One bound) Detection is available.

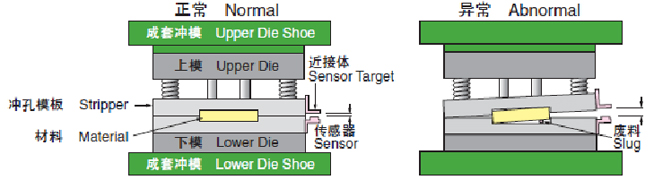

Detection Method

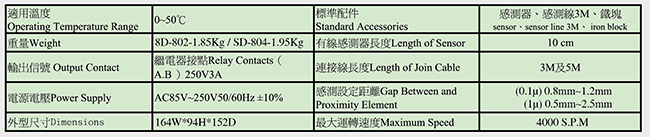

Specifications

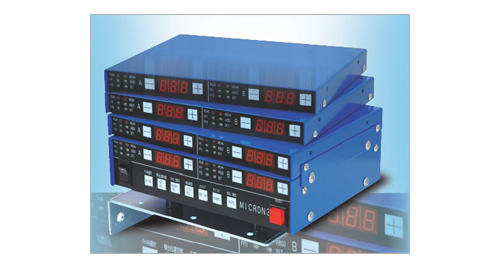

DUCIS SD-802/804(New Product 0.1u)

Product Features:
SD-802 One basic unit, Dual channels device(Dual Ports).
SD-804 One basic unit, Four channels device(Four Ports).
