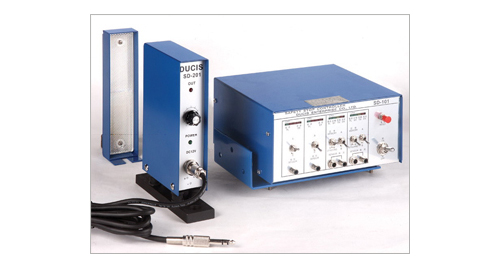

DUCIS SD-101/102/201/202

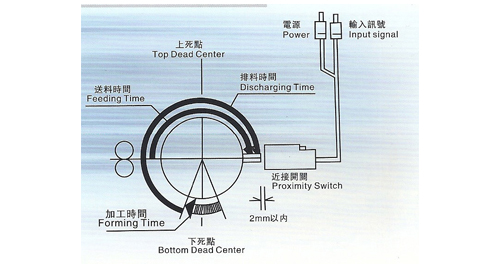

The chart of synchronization signal and angle

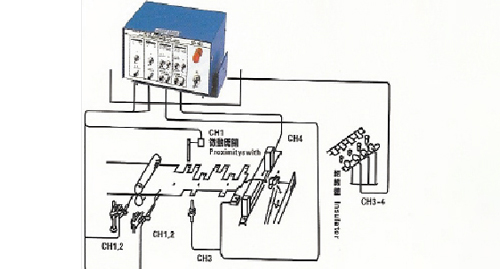

NON-CONTACT CHECKING METHOD:
Limit Switch used to do discharge and synchronization check.The chart shows the relation between the input signal time and the angle.
SD-101/102
| “A” Corrugation Extrusion | Detecting Rod: ”ON” Contact Check |
| “B” Feeding Out | Detecting Rod: ”OFF” NON-Contact Check |
| “Synchro” Shortage of feeding Distance of feeding |
Work with the feeding time of the machine to check feeding checking point is fixed at 90° .(TM yellow lamp).The material must be fed at right place before brightening of TM lamp. IF not, the machine stops. |
| “Memory” Discharging workpiece | On every pressing stroke,it must has a workpiece to pass the detecting device(photoelectric,magnetic,micro,proximity switches,etc.)which outputs a checking signal to the controller to store("MY"green lamp). TM lamp brightens and eliminates the memory if NO workpiece passes. The machine stops. |
| Detecting Device | Proximity,photoelectric,infrared detection switch(DC 12V,built-in amplifier),and the detecting rod,micro-switches. |
| SD-101 | SD-102 | ||
| CH1-2 | Check corrugation and extrusion of materials (“A”position)check feeding out(“B”position). |
CH1 | Check corrugation and extrusion of materials (“A”position)check feeding out(“B”position). |
| CH3 | Check shortage of feeding, distance of feeding (“Synchro”position) using proximity switch, photoelectric switch. | CH2 | Check the orientation. Using the optical fiber. |
| CH4 | Confirmation of discharging workpieces. Using SD-201/202. | CH3 | Check shortage of feeding, distance of feeding (“Synchro”position) using proximity switch, photoelectric switch. |
| CH4 | Confirmation of discharging workpieces. Using SD-201/202. | ||
Specifications：
| SD-101/102 | SD-201/202 | ||
| Channel | 4.check individually | Checking amplitude | （Infrared detection） SD-201：MAX 150mm SD-202：MAX 100mm |
| Switches | A/B,memory/synchronize | Minimum check | φ2mm(checking distance:0.5M) opacity |
| Response time | “ON”check:3μ,”OFF”check:<300μ | Checking distance | <500mm |
| Power supply | AC85V~250V、50/60Hz±10% | Power supply | DC12V(±10%) |
| Power consumption | <16W | Power consumption | <60mA |
| Output signal | Relay/A/B(220V3A),(110V8A) | Indicating lamp | Green:POWER , Red: GO |
| Delayed time | <10ms | Sensibility | Adjusted by the shape of material and distance |
| Applicable temperature | 0℃~40℃ | Applicable temperature | 0℃~40℃ |
| Input signal | DC12V、detecting device | Response speed | <1ms |

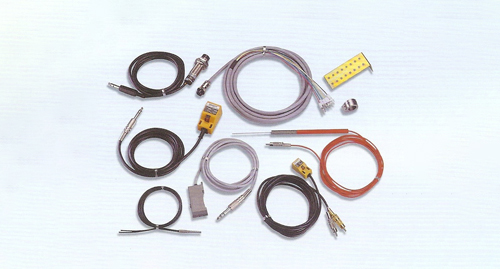

| Standard accessories | SD-101： Detecting rod 2pcs;proximity switch 1set;length of join cable 2pcs SD-102： Detecting rod 4pcs;proximity switch 1set;length of join cable 2pcs |
Length of joint cable | 2.5M |
| Dimensions | 175W*212L*100H | Dimensions | 40W*210L*180H |
| Weight | 2.65kg | Weight | Main unit:1.2kg/Reflective plate :0.3kg |
RIKEN PMC-3
Product Features
1.Easy operation with user friendly design.
2.The expandable design which meets the variety of needs.
3.Enhance the functionality with additional units on demand.
4.Counter unit is easy to see by the large-sized LED display.
5.Large Liquid-Crystal Display Unit (CLT) enables production management.
6.CLT unit employs large color liquid crystal and enables wide range appreciation.
Detection Functions
End-of-Material Detection (CH1)
The device detects the end of feeding material, using a touch sensor, a limit switch, etc. and outputs a stop signal.
Buckling Detection (CH2・CH3)
The device detects buckling when material is caught or bended in the die, using a touch sensor, limit switch, etc., on the material feed side, and outputs a stop signal.
Mis-feed Detection (CH4)
The device checks whether material is fed in proper length during one stroke, using a timing signal, touch sensor, etc., and outputs a stop signal upon detection of mis-feed.
Ejection detection(CH5・CH6)
The device detects ejection of the work using a light curtain sensor, magnetic pass-through sensor. etc., determines the presence of a fault and outputs a stop signal.
Optional Unit

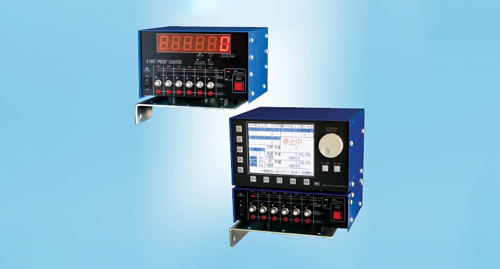

Counter Unit
PMC-CU is an optional counter unit for used with PMC3. With the addition of this unit, not only a six-digit counter can be made use of,but also much more function can be added:
Selection of detection functions
For each channel, a detection function can be selected from make, break, mis-feed and ejection detections.
Reference cam function
(special function for continuous operation)
Use of a reference cam makes it possible to generate two types of arbitrary timing signals.
Switching of sensor input polarity
Switching between sensor inputs can be done for each channel.
SPM Display
Shows SPM during press operation.

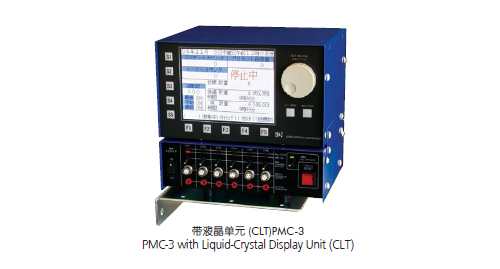

Liquid-Crystal Display Unit (CLT)
CLT is an optional Liquid-Crystal Display Unit for used with PMC-3
and it has various and rich functions which are useful for productivity improvement and rationalization.
With adding this unit, anyone can operate and set various functions of PMC-3 interactively.
Model |
Commodities Component |
|||||||
PMC-3-BU |
PMC-3-MU |
PMC-3-CU |
Sensor Kit |
LDS-100 |
LDR-110 |
LDS-200 |
Remark |
|
PMC-3N |
||||||||
PMC-3A |
○ |
─ |
─ |
○ |
─ |
─ |
─ |
|
PMC-3B |
○ |
─ |
─ |
○ |
○ |
─ |
─ |
|
PMC-3R |
○ |
─ |
─ |
○ |
─ |
○ |
─ |
|
PMC-3ML |
○ |
─ |
─ |
○ |
─ |
─ |
○ |
|
| PMC-3N with Counter Unit | ||||||||
PMC-3CA |
○ |
─ |
○ |
○ |
─ |
─ |
─ |
|
PMC-3CB |
○ |
─ |
○ |
○ |
○ |
─ |
─ |
|
PMC-3CR |
○ |
─ |
○ |
○ |
─ |
○ |
─ |
|
PMC-3CL |
○ |
─ |
○ |
○ |
─ |
─ |
○ |
|
| PMC-3N with CLT unit | ||||||||
PMC-3MA |
○ |
○ |
─ |
○ |
─ |
─ |
─ |
|
PMC-3MB |
○ |
○ |
─ |
○ |
○ |
─ |
─ |
|
PMC-3MR |
○ |
○ |
─ |
○ |
─ |
○ |
─ |
|
PMC-3ML |
○ |
○ |
─ |
○ |
─ |
─ |
○ |
|
| Unit only | ||||||||
PMC-3-BU |
○ |
─ |
─ |
─ |
─ |
─ |
─ |
PMC-3N Unit |
PMC-3-MU |
─ |
○ |
─ |
─ |
─ |
─ |
─ |
CLT Unit |
PMC-3-CU |
─ |
─ |
○ |
─ |
─ |
─ |
─ |
Counter Unit |
| Touch Sensor | ||||||||
Sensor Kit |
─ |
─ |
─ |
○ |
─ |
─ |
─ |
Touch Sensor |
| Part Ejection Light Sensor | ||||||||
LDS-100 |
─ |
─ |
─ |
─ |
○ |
─ |
─ |
Direct Projection type, 100mm Height |
LDS-200 |
─ |
─ |
─ |
─ |
─ |
─ |
○ |
Direct Projection type, 200mm Height |
LDR-110 |
─ |
─ |
─ |
─ |
─ |
○ |
─ |
Reflection type, 110mm Height |
