Introduction

It is an era for making high frequency of die changing with multiple patterns and small quantity. In order to save die changing time and ensure operational safety, it is just in time to apply Quick Die Change System.

APPLICATION:

  • Press & Hydraulic Press
  • Different Automatic Machine & Clamp System

Air Driven Hydraulic Pump Unit 氣動油壓泵浦單元

  • The hydraulic pump is driven by air. Once the hydraulic pressure reaches the pressure setting, it stops pumping which is energy saving. Meanwhile, if the working pressure reduces, the pump would supply pressure automatically to keep working pressure continuously.
  • The circuit control system is designed with the function of checking and avoiding oil leakage. If pneumatic pressure out, the hydraulic pressure still maintains.
  • It is capable of pressure inspection and connecting to machines.
  • It is suggested to adopt pump model PC12 when used with clamp model CA&CB-16 or 25

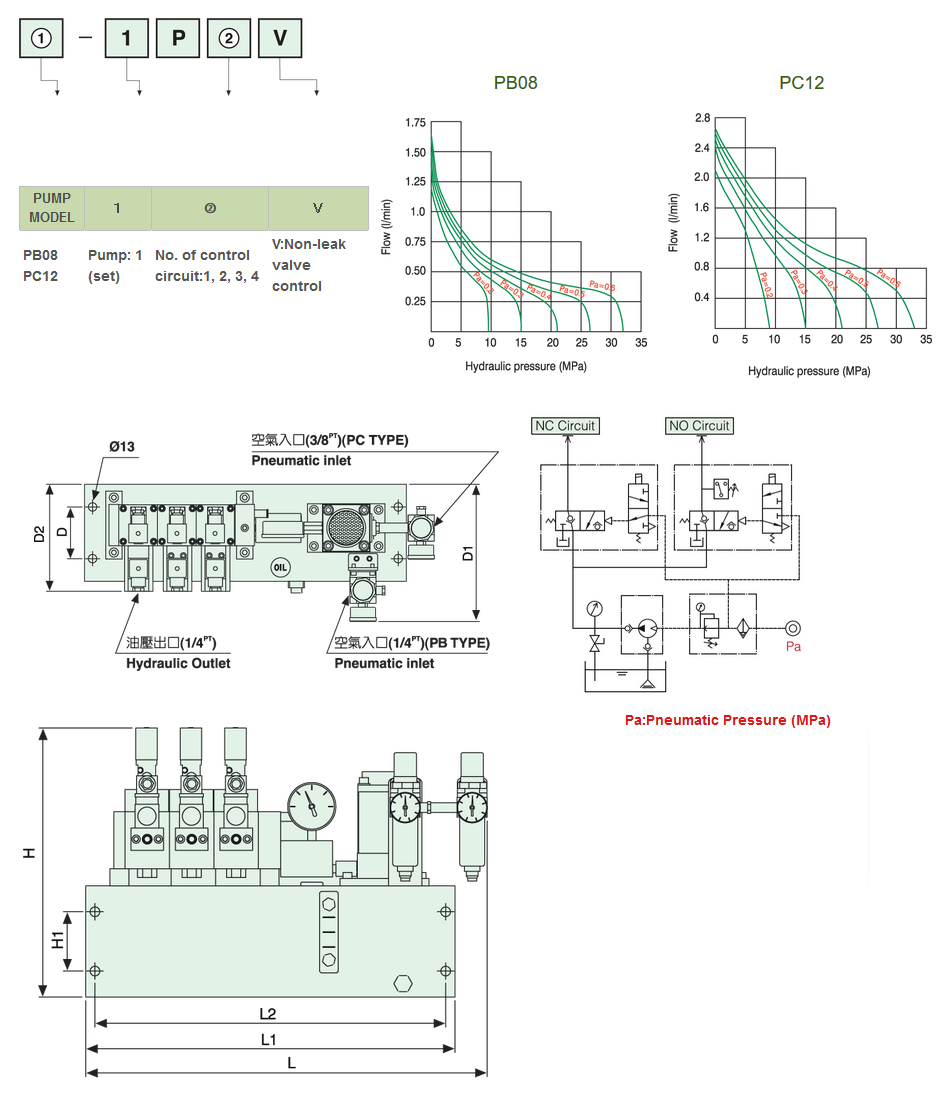

Model Selection

AIR DRIVEN HYDRAULIC PUMP UNIT

MODEL L L1 L2 H H1 D D1 D2 Volume
PB08-1P1V - 378 353 367 80 80 235 - 6L
PB08-1P2V - 438 413 367 80 80 235 - 7L
PB08-1P3V - 498 473 367 80 80 235 - 8L
PB08-1P4V - 588 563 367 80 80 235 - 10L
PC12-1P3V 560 - 473 367 80 80 - 166 8L

The air combination unit of Model PB08 in the front, and Model PC12 on the right side.
