Micro-Adjusted Lubricator 雙面給油機

    Details :
  • Used for material with double sides oiling at same time to prolong greatly the service life of pressing mold.
  • Aluminum alloy body structure with anodic treatment on surface,that to be beautiful and durable.A mounting bracket is included which suitable to install on all machines body.
  • Special micro-adjusting oiling design,the oil volume can be controlled easily depending on the work condition.It could save oil consumption.
  • Adopts high-density wool cotton material with excellent anti-wearing and powerful oil absorbing which is in separate piece model design,easily to maintenance.
  • Filtering mesh is deviced inside the oil barrel then the lubricant can be used again.
  • The option of electrical pump lubricator can combine with press for automatic and man power saving operation.
  • The upper roller used multiple nipples for different oil volume adjusting,to meet customer's special requirement.

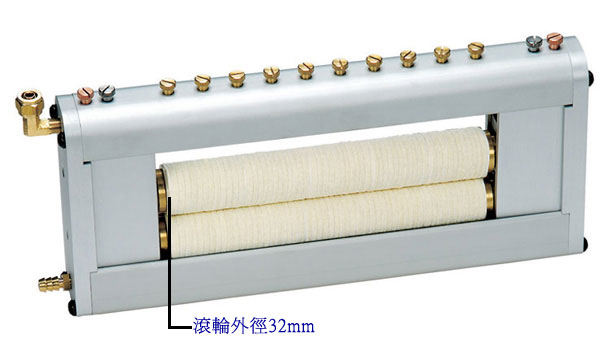

Specifications
材料雙面給油機
Double Side Lubricator
產品型號
Model		 AT-
65 80 100 150 200 250 300
最大材料寬度
Max. Material Width (mm)		 65 80 100 150 200 250 300
材料厚度
Material Thickness (mm)		 　0.1~6.0

產品型號
Model		 AT-
400 500 600 700 800 900 1000
最大材料寬度
Max. Material Width (mm)		 400 500 600 700 800 900 1000
材料厚度
Material Thickness (mm)		 　0.1~6.0

產品型號
Model		 BT-
80 100 150 200 250 300 350 400
最大材料寬度
Max. Material Width (mm)		 80 100 150 200 250 300 350 400
材料厚度
Material Thickness (mm)		 0.1~2.0

Micro-Adjusted Lubricator Specifications:

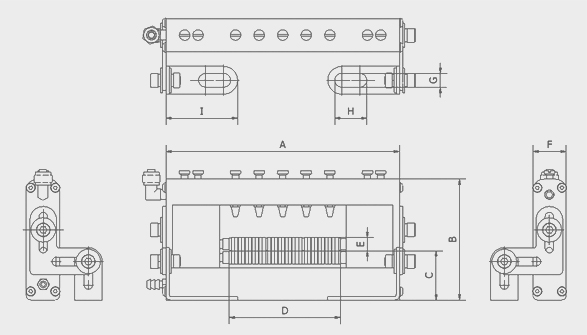

  A B C D E E G H I
AT-65 189 142 57 65 Ø32 45 13 30 58.5
AT-80 204 142 57 80 Ø32 45 13 30 58.5
AT-100 224 142 57 100 Ø32 45 13 30 58.5
AT-150 274 142 57 150 Ø32 45 13 30 58.5
AT-200 324 142 57 200 Ø32 45 13 30 58.5
AT-250 374 142 57 250 Ø32 45 13 30 58.5
AT-300 424 142 57 300 Ø32 45 13 30 58.5
AT-350 474 142 57 350 Ø32 45 13 30 58.5
AT-400 524 142 57 400 Ø32 45 13 30 58.5
AT-450 574 142 57 450 Ø32 45 13 30 58.5
AT-500 624 142 57 500 Ø32 45 13 30 58.5
AT-550 674 142 57 550 Ø32 45 13 30 58.5
AT-600 724 142 57 600 Ø32 45 13 30 58.5
AT-650 774 142 57 650 Ø32 45 13 30 58.5
AT-700 824 142 57 700 Ø32 45 13 30 58.5
AT-750 874 142 57 750 Ø32 45 13 30 58.5
AT-800 924 142 57 800 Ø32 45 13 30 58.5
AT-850 974 142 57 850 Ø32 45 13 30 58.5
AT-900 1024 142 57 900 Ø32 45 13 30 58.5
AT-950 1074 142 57 950 Ø32 45 13 30 58.5
AT-1000 1124 142 57 1000 Ø32 45 13 30 58.5

Type Wide(W) Thick
AT-65 65 m/m 0.10~6.0 m/m
AT-80 80 m/m 0.10~6.0 m/m
AT-100 100 m/m 0.10~6.0 m/m
AT-150 150 m/m 0.10~6.0 m/m
AT-200 200 m/m 0.10~6.0 m/m
AT-250 250 m/m 0.10~6.0 m/m
AT-300 300 m/m 0.10~6.0 m/m
AT-400 400 m/m 0.10~6.0 m/m
AT-500 500 m/m 0.10~6.0 m/m
AT-600 600 m/m 0.10~6.0 m/m
AT-700 700 m/m 0.10~6.0 m/m
AT-800 800 m/m 0.10~6.0 m/m
AT-900 900 m/m 0.10~6.0 m/m
AT-1000 1000 m/m 0.10~6.0 m/m

Features

  • The material lubricator is suitably used for material eith double sides oilling at same time to prolong greatly the service life of pressing mold.
  • Aluminum alloy body structure with anodic treatment on surface, that to be beautiful and durable. A mounting bracket is included which suitable to install on all machines body.
  • Special micro-adjusting oiling design, the oil volume can be controlled easily depending on the work condition. It could save oil consumption.
  • This lubricator adopts high-density wool cotton material with excellent anti-wearing and powerful oil absorbing which is in separate piece model design, easitly to maintenance.
  • Filtering mesh is deviced inside the oil barrel then the lubricant can be used again.
  • The option of electrical pump lubricator can combine with press for automatic & man power saving operation.
  • The upper roller uses multiple nipples for different oil volume adjusting, to meet customer's special requirement.

Operating method

  • Upperroller lubricating method:
  • Segment reinforcing oil providing is from outside of upper roller, the oil is from the yellow color copper adjusting nipples on the top rail.
  • Normal oil providing is from inside of the roller. The oil volume can be adjusted by the two red color copper adjusting nipples on both sides of the top rail.

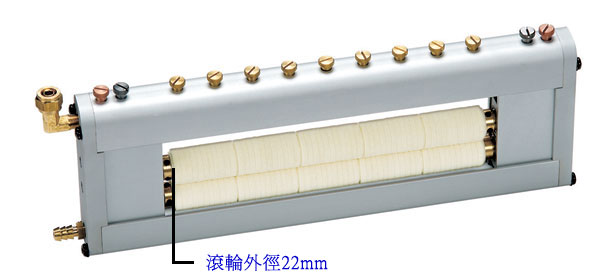

Micro-Adjusted Lubricator Specifications:

A B C D E E G H I
BT-80 198 113 42 80 Ø22 31 13 30 58.5
BT-100 218 113 42 100 Ø22 31 13 30 58.5
B T-150 268 113 42 150 Ø22 31 13 30 58.5
BT-200 318 113 42 200 Ø22 31 13 30 58.5
BT-250 368 113 42 250 Ø22 31 13 30 58.5
BT-300 418 113 42 300 Ø22 31 13 30 58.5
BT-350 468 113 42 350 Ø22 31 13 30 58.5
BT-400 518 113 42 400 Ø22 31 13 30 58.5

Type Wide(W) Thick
BT-80 80 m/m 0.10~2.0 m/m
BT-100 100 m/m 0.10~2.0 m/m
BT-150 150 m/m 0.10~2.0 m/m
BT-200 200 m/m 0.10~2.0 m/m
BT-250 250 m/m 0.10~2.0 m/m
BT-300 300 m/m 0.10~2.0 m/m
BT-350 350 m/m 0.10~2.0 m/m
BT-400 400 m/m 0.10~2.0 m/m

Features

  • The material lubricator is suitably used for material eith double sides oilling at same time to prolong greatly the service life of pressing mold.
  • Aluminum alloy body structure with anodic treatment on surface, that to be beautiful and durable. A mounting bracket is included which suitable to install on all machines body.
  • Special micro-adjusting oiling design, the oil volume can be controlled easily depending on the work condition. It could save oil consumption.
  • This lubricator adopts high-density wool cotton material with excellent anti-wearing and powerful oil absorbing which is in separate piece model design, easitly to maintenance.
  • Filtering mesh is deviced inside the oil barrel then the lubricant can be used again.
  • The option of electrical pump lubricator can combine with press for automatic & man power saving operation.
  • The upper roller uses multiple nipples for different oil volume adjusting, to meet customer's special requirement.

Operating method

  • Upperroller lubricating method:
  • Segment reinforcing oil providing is from outside of upper roller, the oil is from the yellow color copper adjusting nipples on the top rail.
  • Normal oil providing is from inside of the roller. The oil volume can be adjusted by the two red color copper adjusting nipples on both sides of the top rail.
  • Lower roller libricating method:
    • Normal oil providing is from inside of the roller. The oil volume can be adjusting by the two black color copper adjusting nipples on both sides of the top rail.



  • Lower roller libricating method:
    • Normal oil providing is from inside of the roller. The oil volume can be adjusting by the two black color copper adjusting nipples on both sides of the top rail.

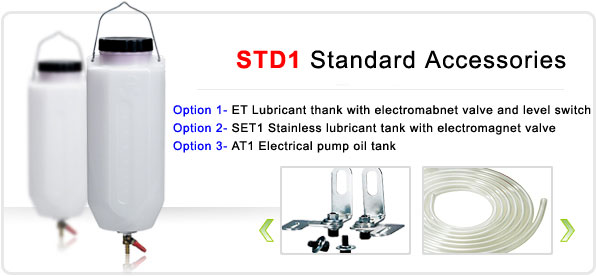

Option 1: ET Lubricant thank with electromabnet valve and level switch: The lubricant tank equipped with electromagnet valve is capable of feeding the lubricant.synchronously with the press. It lubricates when the press is in operation, and stops feeding oil when the press stops. Connected to th press control device to stop the press when the lubricant tank is out of oil. (Voltage ot electromagnet valve:110V or 220V)

Option 2: SET1 Stainless lubricant tank with electromagnet valve: The lubricant tank equipped with electromagnet valve is capable of feeding the lubricant synchronously connected to the press control system. It lubricates when the press is in operation, and stops feeding oil when the press stops. (Voltage ot electromagnet valve:110V or 220V)

Option: AT1 Electrical pump oil tank The electrical pump oil tnak can be connected to press's control system for simultaneous oiling.Automatic oil feeding when press in punch operating, automatic oil stopping when press coming stop. (Voltage ot electromagnet valve:110V or 220V)
