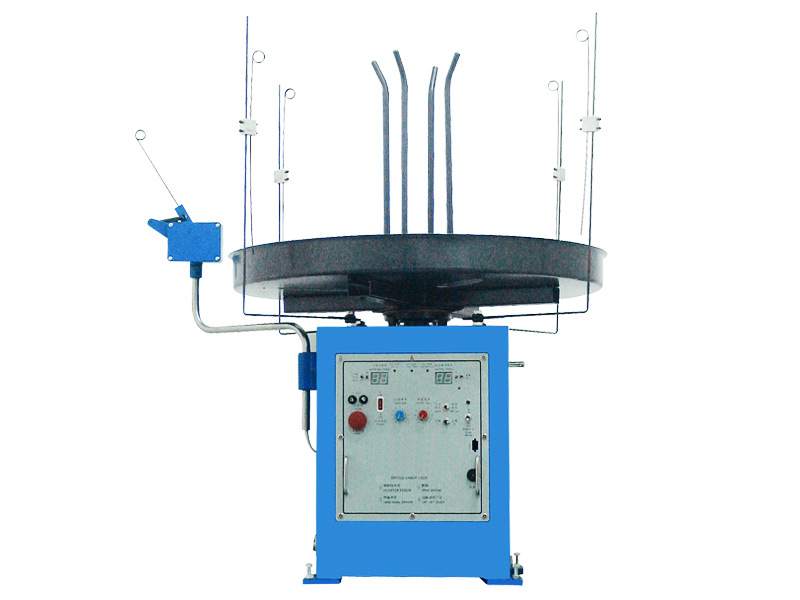

Automatic Decoiler

Automatic Decoiler
  GLP60ENA GLP100ENA GLP200ENA GLP1000ENA GLP1500ENA
Load Weight 60 kgs 100 kgs 200 kgs 1000 kgs 1500 kgs
Coil Bowl Ø620 mm Ø800 mm Ø1000 mm Ø1300 mm Ø1600 mm
Machine Dimension 400 x 450 x 530 mm 500 x 420 x 530 mm 755 x 650 x 950 mm 1280 x 1000 x 670 mm 1752 x 1600 x 670 mm
Net Weight 65 kgs 77 kgs 106 kgs 320 kgs 400 kgs
Inner Size of Coil 155-430 mm 162-530 mm 200-950 mm 400-1100 mm 400-1500 mm
Power Specification 220V 3P
(Changed according to customers requirement)

Automatic Decoiler
